Easy to use and order 50 - 350 ml WV batch SUB
With a Vessel Volume (VV) of only 500 ml this small CellVessel size covers from as little as 50 to 350 ml Working Volume (WV). The round 500 ml SUB is available with classical signal pH SUS and DO Single-Use-Well and future bio-mass Single-Use-Sensor all pre-installed.
As to the small size (only OD 82 x 120 mm) and very low thermal mass we recommend the SUB is installed in a Heating-Support-Foot. The HSF have drilled holes (HSF Heating-Support-Foot) for standard OD 3 and OD 4 and OD 6 mm thermo couples from a Process-Control-System (PCS). The HSF contributes with thermal mass adapted for better accommodation to the PID algorithms limits in many PCS.
CerCell offer several sizes of the Magnetic-Stirrer-Table (MST) which accommodate installation of 500 ml batch SUB based on the CerCell concept = fully interchangeable. Photo at left show 500 ml batch SUB mounted in electrical HSF mounted on MST. Centre photo show the 500 ml inserted into a HSF designed to fit the 4 x ID 110 mm DasGip bioBlock or iCELLis block. Right photo shows 500 ml batch SUB in HSF for use on any 5 watt lab magnetic-stirrer.
Easy media exchange P-SUB range 50 - 250 ml WV

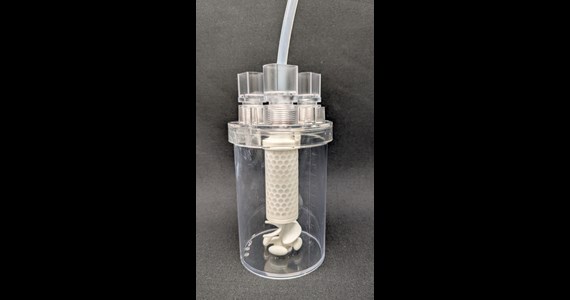

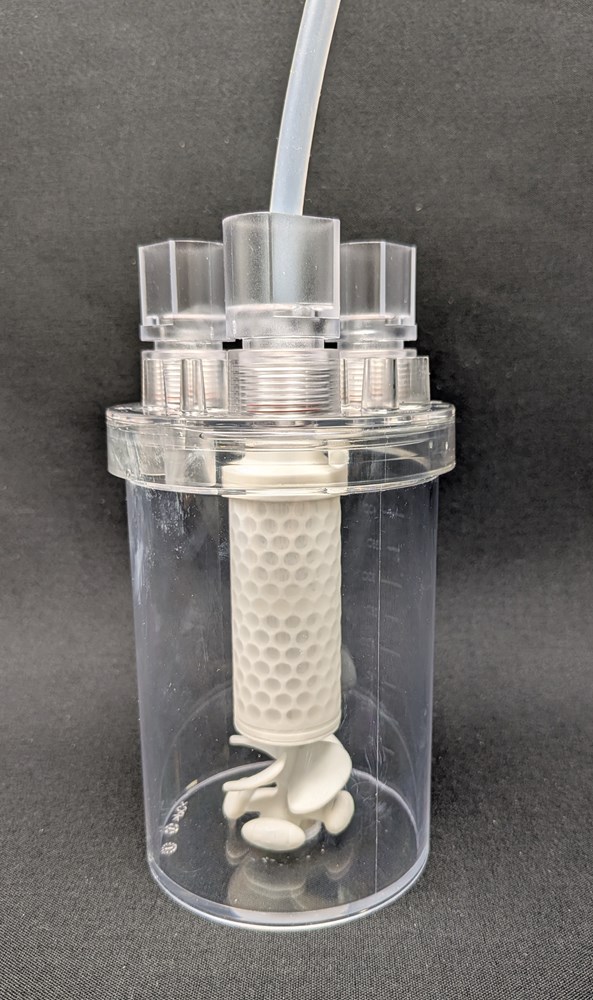

2024 prototype 500 ml P-SUB cage

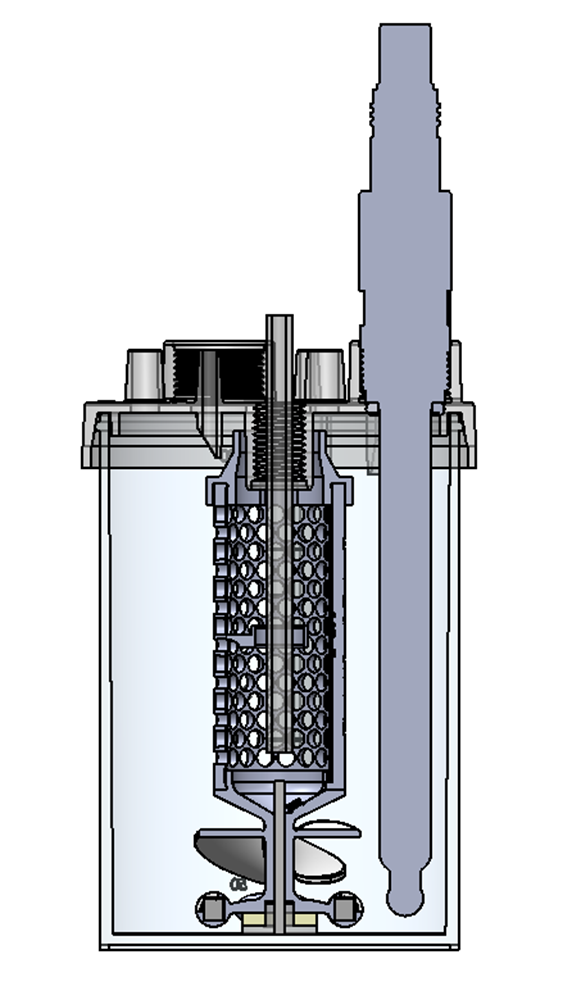

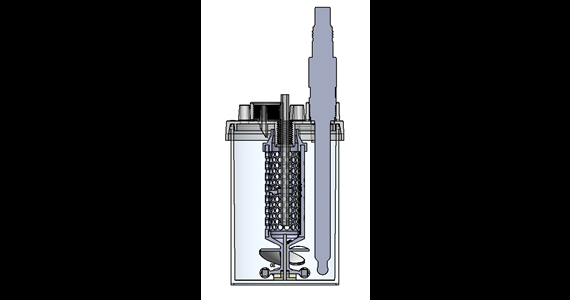

sketch rotating cage 500 ml P-SUB

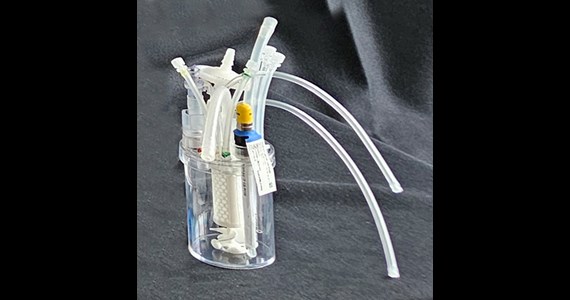

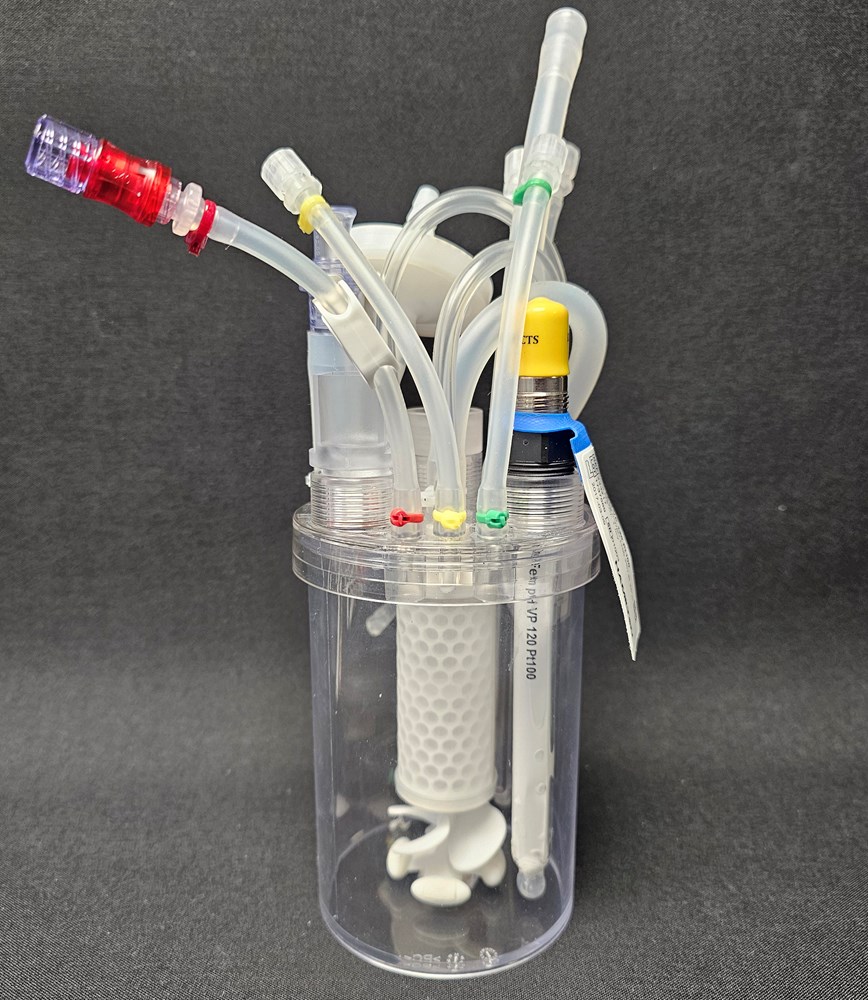

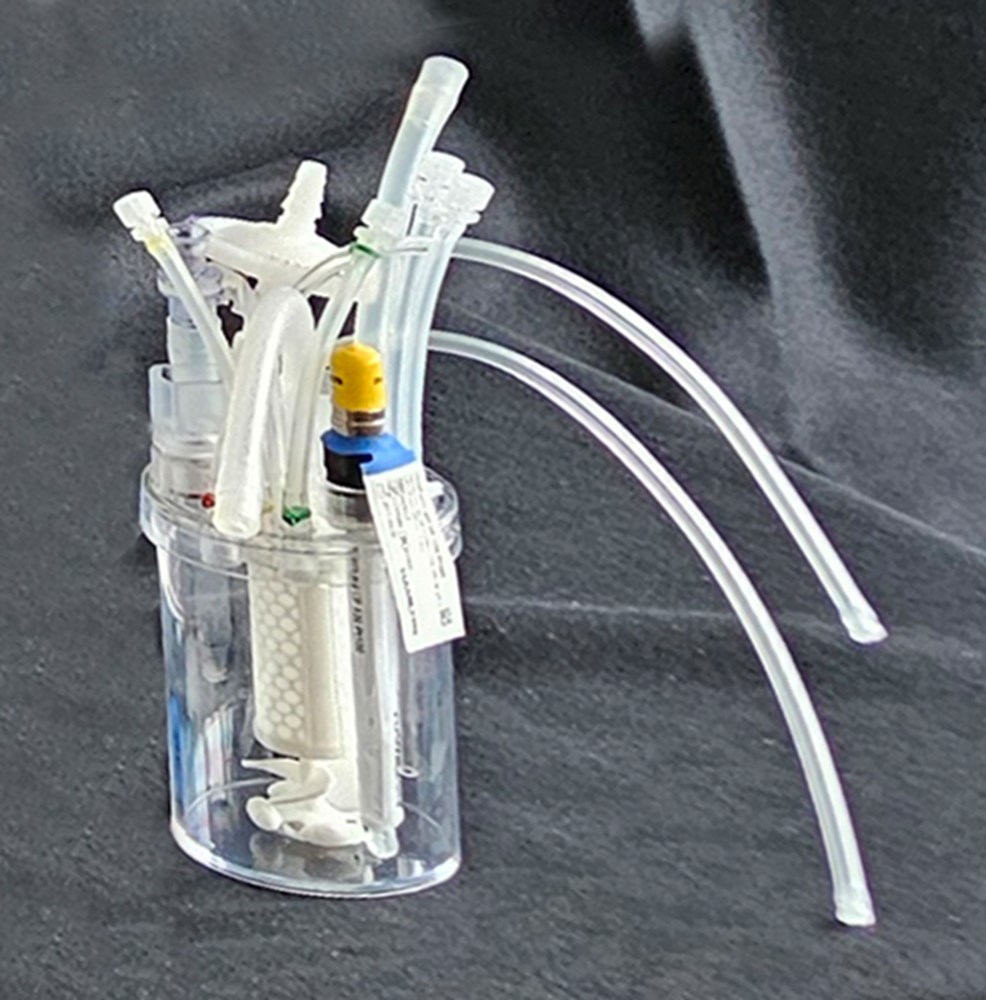

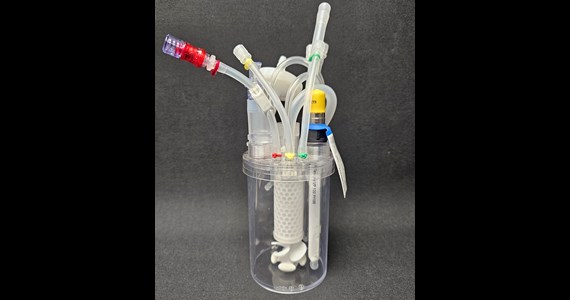

2026 rotating cage in 500 ml P-SUB
The 500 ml Perfusion-SUB vessel is a perfect size for a variety of applications. Keep in Working Volume micro-carriers or agglomerated cells for proliferation or expression with continuous media exchange. The cage and impeller is integrated and to be driven on the Magnetic-Stirrer-Table. Media exchange pumped out with the stationary tube inside the cage which have selectable pore size mesh surface.
Further SUB details:
- Comes with Magnetic-Bottom-Drive (MBD) operating from 30 and up to 500 RPM
- Rotating OD30 mm cage covered by PA6.6 mesh with selectable pore size ranging from 10 up to 500 µm pore
- One customized pitch blade impeller may reach as low as 50 ml Working Volume (sensor dependent)
- Choose Single-Use-Sensors - VisiWell and OneFerm - size 120 mm, leaves one free PG 13.5 port
- Without sensors - 3 free PG 13.5 ports - take a look at the head plate
- 3 small inner diameter hoses length 600 mm
- 1 thermo couple well
- 1 small inner diameter short hose with 5 cm2 sterile filter for aeration via porous body
- 1 small inner diameter short hose with swabable valve for sampling
- 1 exhaust hose with 16 cm2 sterile filter
- Need for liquid based temperature control = Heating-Support-Foot (HSF)
- Need for electrical temperature control = Heating-Support-Foot (HSF)
