Single-Use-Sensor system's

Vertically mounted pre-installed Single-Use-Sensor's (SUS)

Most sensor's are based on the PG 13.5 x 12 mm format and mounted through the head plate.

Technology

Optical

Chemical

Chemical

Capacitance

Capacitance + electrical

Chemical

Electrical

Product name

VisiWell™

PolarWell™

OneFerm™

FUTURA pico

InCyte-ARC

CO₂NTROL

ConducCell™

Parameters, analytes

DO

DO

pH

bio mass

bio mass + Pt1000 + conductivity

 CO2

Dual conductivity + Pt100/1000

Communication

 digital

analogue

analogue

digital

digital

 digital

analogue

Pre-amplifier

Cronus-PCS Sipylus BJC, MT, Hamilton, Cronus-PCS

Cronus-PCS Sipylus

Aber

Hamilton pre-amp, Cronus-PCS Sipylus

Cronus-PCS Sipylus

Cronus-PCS Sipylus

Connector

VP S8 or K8 or VP

S8 or K8 or VP

custom

VP

 VP

D-SUB

Format

PG 13.5 x 12

PG 13.5 x 12

PG 13.5 x 12

OD7 x 140

patch on wall

PG 13.5 x 12

PG 13.5 x 12

Sensor manufacturer

Hamilton

BJC, MT, Hamilton,

Hamilton

Aber Instruments

Hamilton

Hamilton

CerCell

Single-Use-Well manufacturer

CerCell

CerCell

direct installment

direct installment

direct installment

 CerCell

direct installment

 In media contact

Polymer based SUW for VisiFerm optical RUS

Polymer based SUW for various RUS Polarographic, Ampheometric

Glass SUS

PEEK

Polymer SUS

Polymer SUW for CO₂NTROL RUS

Polymer SUS

Life time

<18 month dry storage
<6 month operation

<18 month dry storage
<6 month operation

<18 month dry storage
<12 month operation

<18 month dry storage

<18 month dry storage <12 month operation

<18 month dry storage <12 month operation

<18month dry storage
<12 month operation

120 mm

available

medio 2017

available

140 mm





available

220 mm

available

medio 2017

n/a

n/a



available

n/a

225 mm

n/a

n/a

available

n/a



available

available

320 mm

available

medio 2017

n/a

n/a



available

available

325 mm

n/a

n/a

available

n/a



available

n/a

425

available

available

available

n/a



available

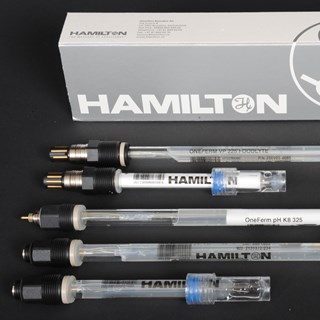

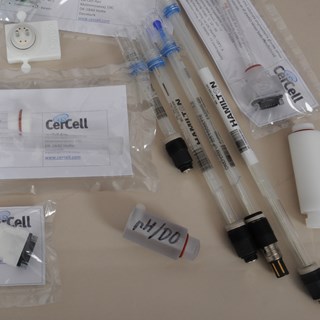

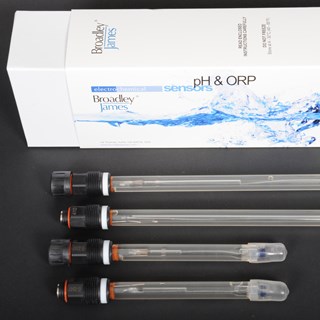

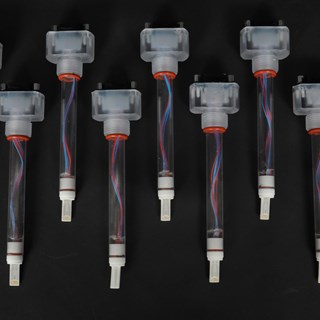

FermProbe 120 and 225 mm pH SUS.JPGlots of ConducCell.JPGOneFerm various pH SUS.JPGSUS range from CerCell.JPGtriple PolarWell.JPG
  • SUS = Single-Use-Sensor, pre-installed by CerCell
  • RUS = Re-Usable-Sensor, insert DO RUS in Single-Use-Well products like VisiWell and PolarWell
  • SUW = Single-Use-Well pre-installed by CerCell. Like VisiWell for the VisiFerm DO RUS and PolarWell for several DO sensors brands
  • DO = Dissolved Oxygen
  • DO well = non-invasive installation concept for DO RUS = SUW
  • VPx = VarioPin connector standard from Bueschel, like VP8 or VP12
  • S8 = Schott pH sensor connector standard widely used
  • K8 = Ingold pH sensor connector standard widely used
  • SS = Stainless Steel
  • D-SUB = 9 leg industrial electrical connector
  • PG 13.5 = PG = Stahl-Panzer-Rohr-Gewinde, old German design, PG 13.5 the thread size on 12 mm rods for vertical sensor installation
  • Point of measure for pH sensor - porous window 5-8 mm from bottom, why pH sensor are longer than DO sensor - 225, 325, 425 mm
  • Point of measure for DO sensor - measured at the flat bottom, why DO sensor length is round figures - 120, 160, 220, 320, 420 mm etc.
