Servo-Motor-Support kit

Small SUB and SUF benefit from Servo-Motor-Support

For all HPD applications with small, light weight SUB/SUF/SUMs and required servo motors on head plate. Or where higher RPM and high-power input is required. Like mixing or fermentation at up to 2,000 rpm with HPD (Head-Plate-Drive). CerCell offer a range of different Servo-Motor-Support (SMS) kits.

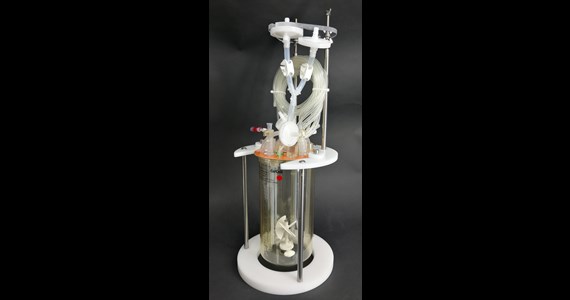

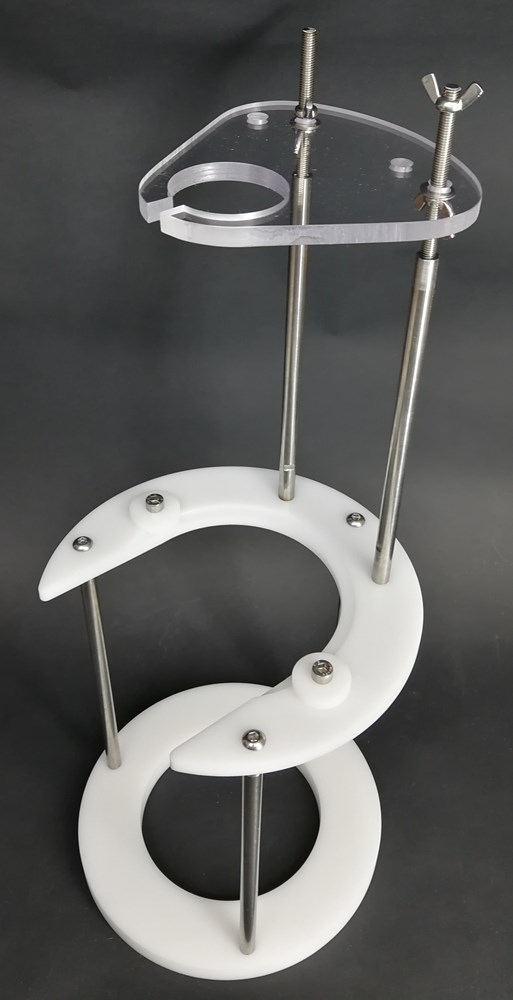

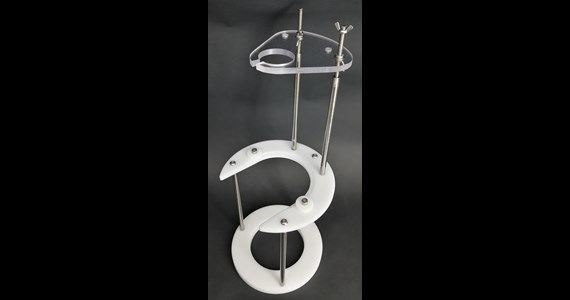

Principal design of the Servo-Motor-Support (SMS) is that the SUB or SUF is hanging in its head plate flange and the servo motor is supported radially at its top.

Height

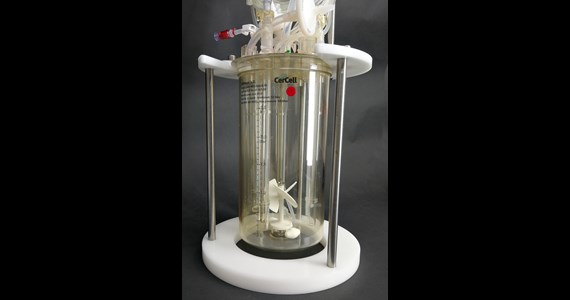

OD 110

OD 137

OD 150

225

y

y

y

320

n

y

y

420

na

na

na

The height information is with ref to sensor length and not total SUB, SUF height
