Easy to order and use SUB product
Popular 13 liter size standard SUB in different variant which require no involvement of specialized help from CerCell. Single-Use-Bioreactor (SUB) which easily replace old fashion glass/steel STR for mammalian cell cultivation. Thermal control for either electrical heating blanket or liquid based dipped into the Re-Usable-Jacket.
The shown (used) CellVessel 13 liter for Electrical-Heating-Blanket (EHB) and HPD drive. The Single-Use-Bioreactor (SUB) outside dimension (OD) is 200 x 420 mm = 13 liter Vessel Volume (VV). As example one or two OD 90 mm Pitch blade impeller on a SS shaft for clock-wise rotation up-flow. Center photo show a foam collection bottle. Far right servo motor on Head-Plate-Drive (HPD).
This popular size SUB options are
- Head-Plate-Drive (HPD) - http://cercell.com/support/drive-system-details/adaptors-hpd/
- Any HPD and servo motor setup you may want
- 500 ml foam collection bottle / sterile filter protection
- Any and as many impellers as needed
- Any type of sparger
- Any In & Out system and hoses you want
- Gas cooler and / or foam collecting bottle
- Classical analogue S8 pH SUS and DO VisiWell or PolarWell (SUW) which connect easily to your PCS
- Plenty of long hoses for In & Out - http://cercell.com/support/cellvessel-details/inout/
Further details
- Only with Head-Plate-Drive (HPD) for up to 500 RPM - choose one of CerCell's servo motor adaptors which fit to your PCS servo motor
- Accessories to be found here - http://cercell.com/products/accessory-products
- Check out head plate configuration on - http://cercell.com/support/cellvessel-details/head-plate-150-250/
- Also available for liquid thermal control - http://cercell.com/support/thermal-system-details/single-use-jacket/

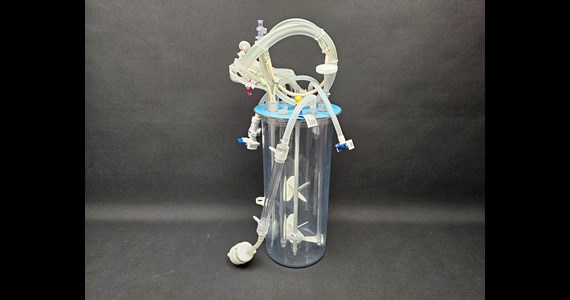

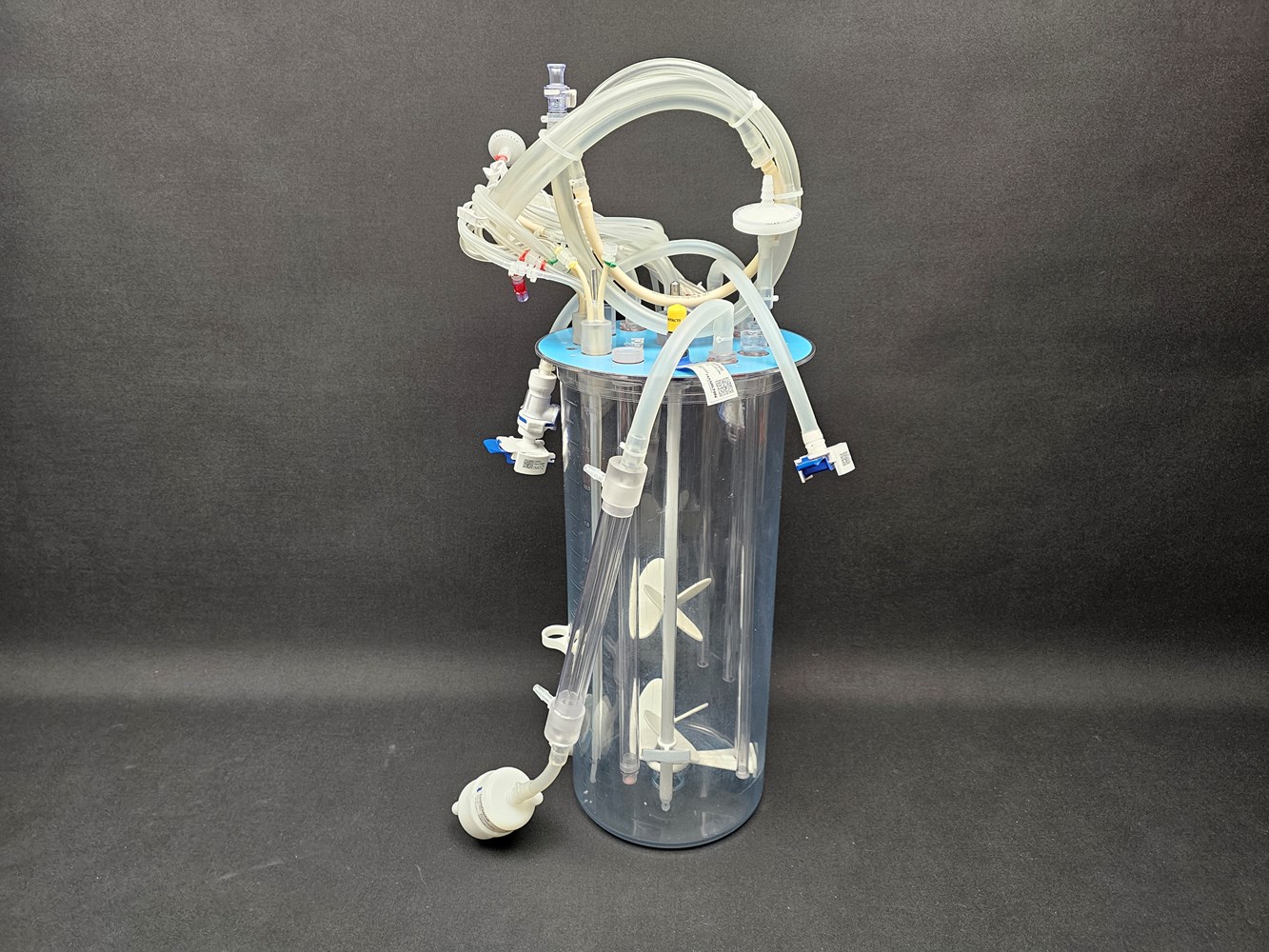

One example of how a custom designed 13 liter SUB may look like in this case for general animal health product. Very efficient gas cooler for sterile filter protection and patch for InCyte biomass sensor.
Check out variants and a few standard products under Commerce
