PR-SUB (Perfusion-Ready-Single-Use-Bioreactor)
Complete your inhouse assembled perfusion systems integrating the “LowRider-1” PR-SUB and save hood time. Bottom broth outlet connected with the Levitronix SUP for circulating the broth through the HFF. The LowRider-1 is designed to fit any small Working Volume perfusion system.

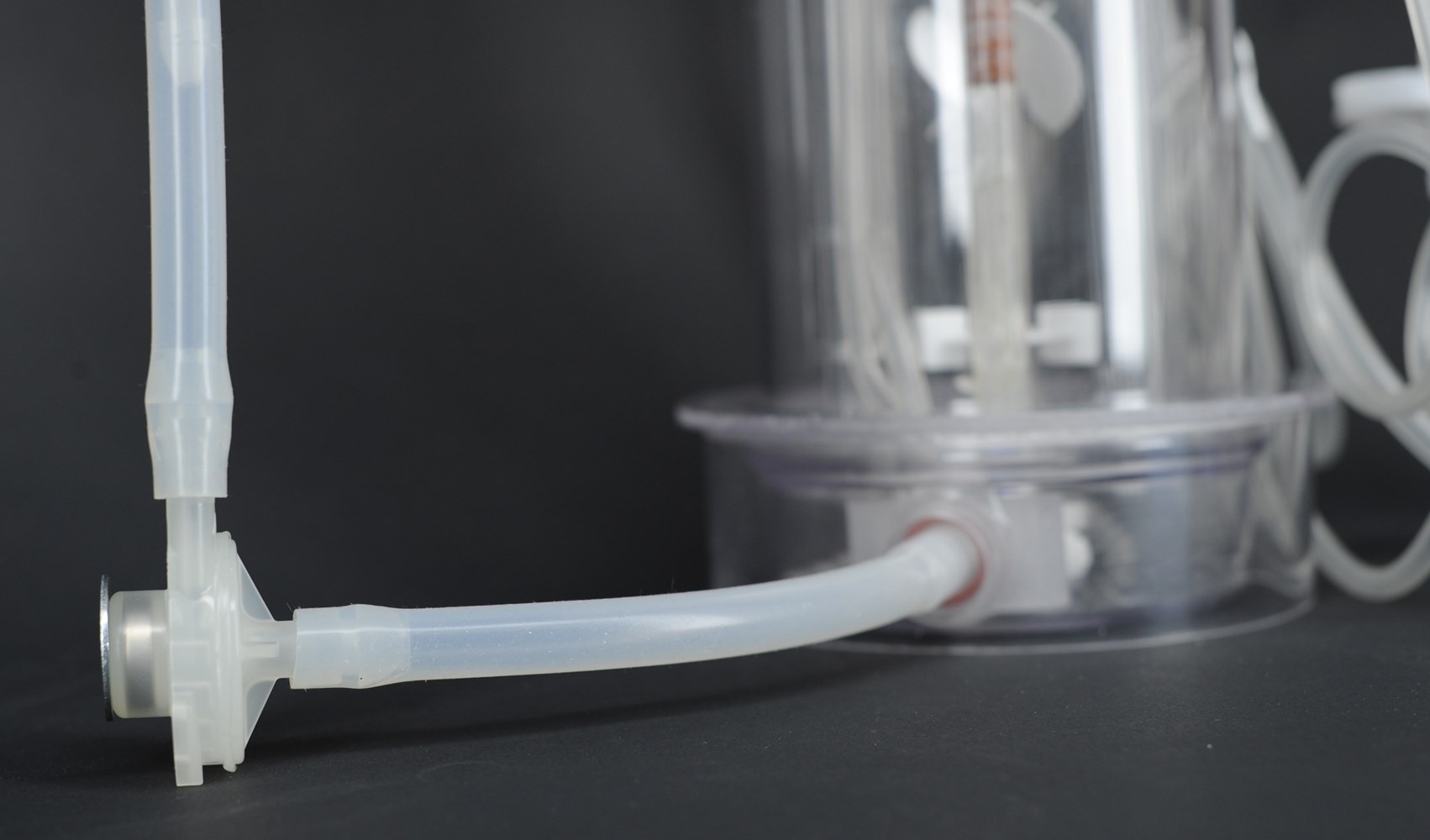

The LowRider-1 PR-SUB with the unique broth outlet at bottom via a hose directly connected to the Levitronix SUP. Simple connection to the HFF follow by the retentate return through a hose and back into the LowRider-1.
Features for the configurable LowRider-1-TFF size PR-SUB
- First class rigid mono component PolyCarbonate components
- Dimension: OD 110 x 270 mm vessel
- Magnetic-Bottom-Drive (MBD) for impeller integrated with Aero magnet motor
- Agitation Elephant ear impeller, OD 60 mm, 3 blades, 45 degrees, CW rotation down flow, 55 mm from the bottom and stator system = lower RPM and reduced foam production
- 1 x PG 13,5 port pre-installed with VisiWell for non-invasive DO RUS insert
- 1 x PG 13,5 port pre-installed with polymeric pH Single-Use-Sensor with K9 connector
- 3 x free / extra sensor ports PG 13,5
- 1 x L-sparger macro or your preferred sparger
- 1 x deep tube for retentate return with 500 mm 10/14 hose
- 1 x HFF of your choice
- 1 x “LowRider” barb broth outlet + 200 mm long hose
- 1 x Levitronix DCP-30-SU arranged with hoses between LowRider-1 and HFF
- 6 x small inner diameter 600 mm long weldable hoses for various inlet and outlets on head plate
- 1 x bottom harvest through head plate with external short hose and swabable valve
- 1 x exhaust with 1 x OD 60 mm sterile filters
A set of photos with hose connections on Low-Rider-1-TFF PR-SUB.
Needed or nice to have re-usable accessories
- Re-Usable elastic electrical heating blanket (dim 75 x 350 mm)
- Magnetic-Stirrer-Table (MST) like the Compact model which support = any servo motor
- SUB-Support-Square plate for MST = use with electrical heating blanket
- If needed - converter kit for servo motor
- If needed - Sterile-Filter-Heater (SFH)
- Accessories to be found here - Accessory Products
Check out more under Support
