0,4 - 2 liter HighRider

PR-SUB (Perfusion-Ready-Single-Use-Bioreactor) for ATF-2

For perfusion systems not integrating a SUB CerCell offer the “HighRider” upstream solution for your own final assembly. Dip tube connection for alternating SUB broth through the HFF to the ATF-2 pump. The HighRider-2 is designed specifically to fit the ATF-2 / XCell-2 semi-ready perfusion system.

The HighRider-2 PR-SUB with installed broth dip tube and connection via an aseptic connector through the head plate. For ATF type of diaphragm “pump’s” able to suck up the broth. The HighRider-2 part number is 28-3520.

Features for the configurable HighRider-2 PR-SUB

  • First class rigid mono component PolyCarbonate components
  • Dimension: OD 137 x 270 mm CellVessel
  • Magnetic-Bottom-Drive (MBD) for impeller integrated with Aero magnet motor
  • Elephant ear impeller, OD 60 mm, 3 blades, 45 degrees, CW rotation down flow, 55 mm from the bottom
  • 1 x PG 13,5 port pre-installed PolarWell or VisiWell for non-invasive DO Re-Usable-Sensor (RUS) insert
  • 1 x PG 13,5 port pre-installed OneFerm pH Single-Use-Sensor with K9 connector
  • 3 x free / extra sensor ports PG 13,5
  • 1 x L-sparger macro or your preferred sparger
  • 1 x dip tube for broth exchange with 500 mm long hose + your preferred connector (AseptiQuick AQS17006) (you supply the HFF with AseptiQuick AQS17006 on top)
  • 6 x small inner diameter 900 mm long weldable hoses for various inlet and outlets on head plate
  • 1 x exhaust with 2 x OD 60 mm sterile filters
  • More details under - Support
  • Accessories to be found here - Accessory Products

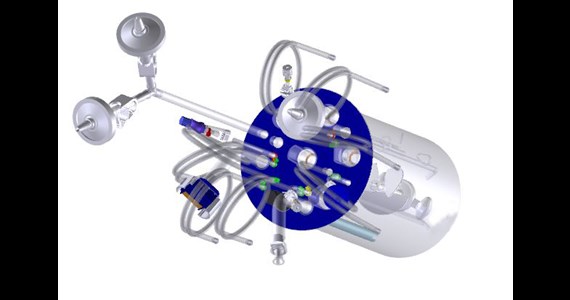

Seen from left the HighRider-2 PR-SUB with Magnetic-Bottom-Drive (MBD). Shown with one blue AseptiQuick connection from the deep tube ready for aseptic assembling with your prepared ATF-2 and HFF.
