Sterile Filter Heater

Sterile-Filter-Heater's (SFH) for various applications

Most of the STH from CerCell use a Power Supply for 110 - 230 VAC connection. The kits are supplied with EU/US/UK plug (RS part number 731-6065 being CE and UL certified). Some kits designed for direct PCS connection via proprietary connector. No thermocouple required, elevated temperature above environment, sterile filter body.

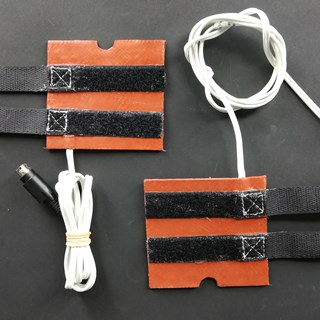

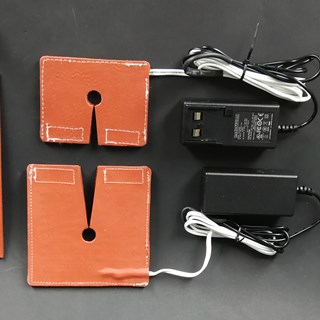

Sterile-Filter-Heater (SFH) for circular flat sterile filter max OD50 mm - 16 cm2. Power rating: 3-5 Watt. Heater dimension, mm: 110x85. Weight, grams: 130 - requires mechanical support. No thermocouple required, 30-40°C temperature difference to environment. CE, UL marked Power Supply for 90-264 VAC supply voltage. Supplied with EU, UK, US plug. MTBF 50.000 hours.

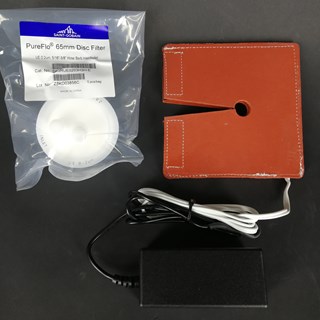

Sterile-Filter-Heater (SFH) for circular flat filter max OD65 mm - 26 cm2. Power rating: 8-10 Watt. Heater dimension, mm: 130x130. Weight, grams: 50 - requires mechanical support. No thermocouple required, 30-40°C elevated temperature above environment. CE, UL marked Power Supply for 90-264 VAC supply voltage. Supplied with EU, UK, US plug. MTBF 50.000 hours.

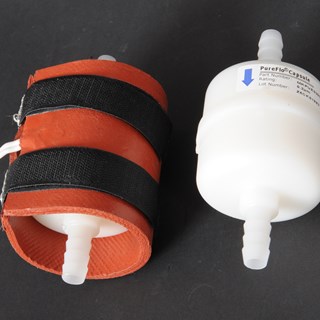

Sterile-Filter-Heater (SFH) for cylindrical 400 cm2 filter. Power rating: 12,5 Watt. Heater dimension, mm: ID56 x H70 - OD85. Weight, grams: 250 - requires mechanical support. No thermocouple required, 45°C temperature difference to environment with 5-10 liter/min gas flow. CE, UL marked Power Supply for 90-264 VAC supply voltage. Supplied with EU, UK, US plug. MTBF 50.000 hours.

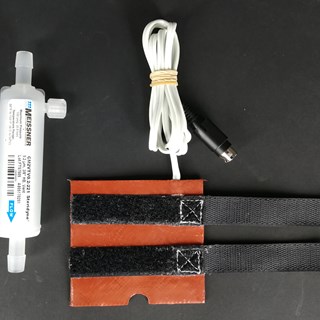

 Sterile-Filter-Heater (SFH) for Meissner CM2VTV cylindrical 335 cm2 filter. Power rating: 4 Watt. Filter dimension, mm: OD32 x 108. No thermocouple required, 30-35°C temperature difference to environment with 1 liter/min gas flow. For direct connection to GE PCS with 32 VAC supply via the Kucon 3P connector.

Stack Of Sterilefilterheater2019 11 08 11.06.132019 11 14 08.45.22D3C 2100SFH Meissner CM2 For GESFH Pn 2212 Incl OD 65
