Thermal

Re-Usable thermal liquid accessories for SUB and SUF

Re-Usable-Jacket’s (RUJ) equipped with 2 x G3/8” female thread. Supplied with one selectable liquid adapter set of your choice and depending on your PCS. Check out numerous details under cercell.com/support/thermal-system-details/small-cellvessel-heating/

Find thermal part numbers and prices here:



Product description

Part no.

unit price EURO / €

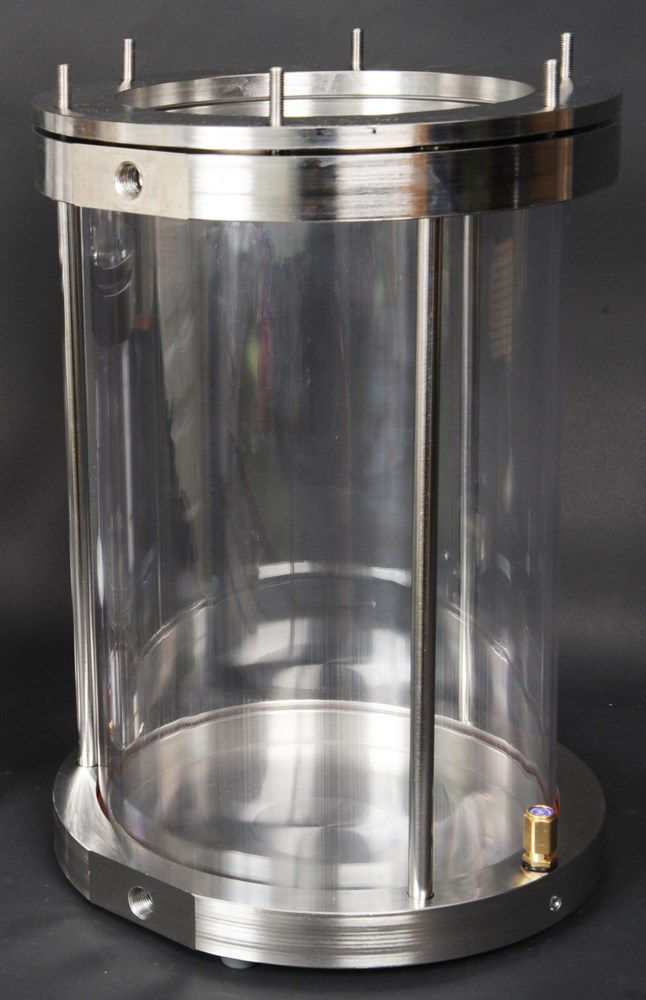

Re-Usable-Jacket / RUJ (heating and cooling) for HPD driven OD 110 SUB and SUF. Available in 225 mm height.

42800-110-225

1.900



Re-Usable-Jacket / RUJ (heating and cooling) for HPD driven OD 130 SUB and SUF. Choose 225, 320, 420 mm height.

42800-130-xxx

2.800

Re-Usable-Jacket / RUJ (liquid heating and cooling) for HPD driven 3,2 liter OD 137 SUB and SUF. Available in 225 mm height.

42800-137-225

2.900



Re-Usable-Jacket / RUJ (heating and cooling) for HPD driven OD 150 SUB and SUF. Choose 225, 320, 420 mm height.

42800-150-xxx

2.900



Re-Usable-Jacket / RUJ (heating and cooling) for HPD driven OD 200 SUB and SUF. Choose 320, 420 mm height.

42800-200-xxx

3.900



Re-Usable-Jacket / RUJ (liquid heating and/or cooling) for MST driven OD 137 x 225 size 3,2 liter SUB or SUF.

Designed to be bolted onto any of the 3 different sized MST.

By far the most popular size RUJ bolted onto MST-U. MST must be ordered separately.

42810-137-225

2.900



Re-Usable-Jacket / RUJ (liquid heating and/or cooling) for MST driven OD 150 SUB. Choose between 320 or 420 mm height.

Bolts on top of MST-C or MST-S. MST must be ordered separately.

42810-150-xxx

3.900



Water connector kit made from POM, G3/8” to OD10 barb for SUJ and RUJ (2 pcs. in package).

42881

100



Water connector kit made from POM, G3/8” to GL18 male glass thread adapter for SUJ and RUJ. (2 pcs. in package). Works with most Biostat PCS.

42882

100



Rectus-21 water connector kit made from Stainless Steel male / female for RUJ. 2 set with G 3/8" (male/female) in package, shut-off female at bottom, open male at top. Works with most red hoses of Biostat PCS.

42883

300



Flexible-Heating-Cooling (FHC) blanket dimension 150×440 mm for liquid borne energy transfer.

42890

500

Accessories for thermal control of 500 ml SUB and SUF

SUB's and SUF's delivered / designed with Magnetic-Bottom-Drive (MBD) to be driven by any of the CerCell MSTs. CerCell suggest using the SUB-Support-Square bolted onto the MST. Check out cercell.com/support/thermal-system-details/small-cellvessel-heating



Product description

Part no.

unit price EURO / €





Heating-Support-Foot (HSF-W) for 500 ml CellVessel / BactoVessel (OD 82 mm) based on conveyed liquid from an external supply. Aluminium construction with OD 137 mm.
This HSF include either:

·       2 x G3/8" to 10 mm barbs
·       2 x Rectus 21 couplings

42896-W

3.000
